Android Tablet PC 10.1"

CPU TI OMAP 3630,1GHz
weight 700g
operating system Eclare( sample stage); Froyo

Industrial standard Portable HD DVR-R1

HD Portable DVR行動錄影機

Global First Window-Xp hand-held Device

Global fisrt Windows-XP Hand-Held Device
Model No:UHD-1.1/UHD-1.6
1. The first PC-level Hand-Held Device
2. Ergonomic,Compact and Robust
3. Windows-XP/Linux High performance system
4. Most powerful function expansion ability
5. Designed for continuous vibration enviornment
6. High performance CPU and low power consumption
7. Palm size deign of low power consumption PC or Notebook

Easy Data Entry
UHD-150 offers both external keypad and large color touch screen for convenient and efficient data entry. Users can make data entry easily through them in extreme environment
Window XP/XP-E
Window XP/XP-e gives versatility through familiar interfaces with wide software application support. It shows perfect interoperability with MS Window-based S/W and peripheral equipment .
Various Expansion
Include PC-base all IO-expansion,such as Internal SD Slot (Secure Digital Slot) , CF Slot (Compact Flash Slot) ,USB 2.0,RS232,Mini-Card that can enable various and convenient expansion to GPS, Camera and 3.5G/GPRS,RFID,SmartCard,fingerprinter sensor, memory and so on.
Removable & Rechargeable Lithium Battery
UHD-150 has removable slim battery with maximum uptime. It gives easiness to carry and change for the other.
Besides,The device reserve the high capacity battery(8000mAhr) ,particularly maintain for long time duty opertation
Powerul communication with Local Radio Network and Wild communication
UHD-150 enables real-time date exchange and synchronization with other computing and communication devices (computer, printer, cellular phone) in Local Radio Network.
UHD-150 include:3.5G,WIFI,Bluetooth,that can enable the wide range communication
Powerful & Speedy Processor
Intel’s brand new Menlow-Z at 1.1GHz and can up to 1.6G is exclusively designed for PC-level hand-held device,that performance more than any current RSIC-base CPU. The UHD-150 equipped with Menlow-Z delivers the highest-speed processing in the PC hand-held devices for robust applications
Superior Date Capture Function
1D/2D scanner engine in worldwide use deliver long-and short-range variable laser scanning for all popular 1D bar codes, plus the optional imager supports a growing number of 2D symbologies
HSDPA & Wireless LAN
UHD-150 provide voice communication and high-speed internet connectivity . They guarantee convenient exchange of mass data and diverse wireless data services including video contents.
Ergonomic Design
Slim and lightweight UHD-150 is designed to reduce user fatigue in scan intensive application. It provides users with comfortable grip.
High resolution TFT LCD screen
A large size semi-transmission 65,000 color TFT LCD makes it possible to enjoy various functions which was not available with previous small screen. And it also offers Touch screen Panel for handy use.
Outstanding Durability
UHD-150 proved unmatched ruggedness to perform in extreme environments through a large variety of durability tests. It successfully passed IP54(Water & Dust proof), Drop test 1.2m, and operating temperature test. It also achieved EMC/EMI and Type approval.


Specification
Features Description Comments
Main-Device Performance
CPU Intel AtomTM processor
zXX series Intel AtomTM (800MHz to 1.6GHz)
Chipset Intel System Controller Hub
Memory System Memory 512MB (Up to 1G)
Storage
Display - 5” TFT color LCD
- 800 x 480 pixels
- Trans-reflective LCD
- Touch Resistive with stylus
- LED Backlit
Display be 100% dimmable via hardware buttons or software controls. LED (Automatic control via brightness sensor)
Orientation of display be landscape LVDS / USB 1
Display - 5” TFT color LCD
- 800 x 480 pixels
- Trans-reflective LCD
- Touch Resistive with stylus
- LED Backlit
Display be 100% dimmable via hardware buttons or software controls. LED (Automatic control via brightness sensor)
Orientation of display be landscape
Battery
(SM Bus) External 12V adaptor
Audio + Speaker 2 channel Audio
Audio + Speaker - Stereo Headphone out / Microphone in, built in mono speaker
Key pad (*)Full Alphanumeric keypad
50 keys: 26 alphabets, 10 numbers, 4 functions, others (Shift, Ctrl, Esc, Arrows, Enter, Delete, Backspace, Power, Tab, navigation keys)
USB port
(USB 2) 1 × of USB2.0 external ports
(One external USB to user for storage)
Ethernet port
(PCIe) 1 × of 10/100 Fast Ethernet port The main body will have the LAN connector ; Will be present on the Cradle as an accessory as well
Expansion port 1 ( right side)
USB 3 / serial 1 IO expansion port for the right side of the device Located at the right side of the main body device for connection of external peripherals (finger print sensor bar code scanners, etc )
Expansion port 2 ( bottom side)
USB 4 / Serial 2 / Power / Ethernet / SDVO IO expansion port / docking connector located on the bottom side The expansion port on the bottom can accept external magnetic stripe reader and other serial devices if required; This connector will also be used for docking the device on the cradle and support USB, serial , power, LAN, SDVO
Micro SD card slot
(SDIO) Secure micro SD card slot At the back of the device
RFID
(Serial 4) Integrated RFID (ISO 14443) Short distance RFID support; Built in to the main body of the device
Inside Main-Device of Optional Function
Wi-Fi /BT SIB module ( USI 8601-600229-21 or similar)
GPS
(SDIO & serial 5)
Mini card 1
(PCIe / USB 5) Supports LAN /WAN Board be designed to support both min-card & half mini card
Mini card 2
(USB 6) Supports LAN /WAN Board be designed to support both min-card & half mini card
Camera
(USB 7) 2MP web cam with auto focus Located at the back side of the main-device
Power Adaptor
- Input :90 ~ 230V AC,50Hz/60Hz
Battery
Built in battery charging management
2nd battery pack hot swappable by the user
Gas Gauge
Recharging time – 4hours or less Open: Rating 7.4V 4400mAh/8000mAhr dependent on actual device power consumption
4400mAhr
8000mAhr
OS
Support standard PC OS, WinXP/XPe English version

Supports Linux ( Ubuntu version)
Physical
Dimension(WxHxL) 140 mmx37.5mmx260.3mm
Dimension(with Printer)(WxHxL) 140mmx74.7mmx293.5mm
Heigh: 30 mm at finger grip; 50mm at base
Weight Main-Device: 0.53kg(without Battery)
Battery: 4000mAhr 0.19kg
Battery:8000mAhr 0.35kg
Thermal Printer:0.13kg
Outside Function Module:0.13kg
ROHS compliance with RoHS
Safety EN60950, UL60950
EMI , EMC EN55022/EN55024, FCC Part 15B – Class B
Environment
Operating temp: 0°C to 50°C
Storage (not incl. battery: (0°C to 60°C)
Humidity : 5 – 95% relative humidity, non-condensing
Ruggedness
Housing plastic / metal with protective rubber cladding and bumpers, Protection against dirt & liquid drops IP53
Drop Spec: Withstands 1.2 m drop, onto concrete.
User accessories
Holster; hand strap; wrist strap; protective case, swiveling belt clip
Docking Cradle Single way communications cradle with support for the following
USB, serial , display (SDVO), Ethernet, battery charging
Outside Plug-In Function
Thermal Printer
(Serial 6) 2inch / 57 mm width thermal printer, 80mm
Width : 2 inch
Print area :~48mm
Diameter of scrolled paper : ~35mm Part number -> FTP-628MCL103 – Fujitsu Integrated with the main body
SAM
(Connects to Smart card controller) 2 × Security Access Modules ( SAM ) which ships as part of the smart card module For the smart card module
At the back of the device
Smart card
(Contact)
(Serial 3) Smart Card Reader/Writer With Contact - Standard ISO 7810, 7816 1-4:
Smart Card Reader/Writer With Contactless
- Standard ISO 14443 type A of B; with embedded antenna
- With Mifare protocol JAVA Card 2.2
PC /SC compatible SDK API
- The card be durable & withstand flexing / abrasion / ESD / Humidity / magnetic field Built into the main body device
support both contact and contactless type
use a MUX in order to support contactless smart card by using a single serial port
Smart card
(Contactless)

Biometric Finger print sensor module Finger Print Access:
Optical, 500dpi finger print sensor
SDK for enrollment, verification and identification
- ISO/IEC 19794-4:2005
- Access & verification time <= 1 Sec Part of the accessories which plugs on the right hand side IO expansion port of the main body
Intel Recommended vendor: Nitgen (CIF)
Bar Code Scan C-MOS
Imager 1/4-inch C-MOS Imager
Part of the accessories which plugs on the right hand side IO expansion port of the main body
Bar Code Scan 1D readable EAN, UPCA/E, Code39, NW7/Codabar, ITF, Code93, Code128, MSI/Plessy,IATA,
Code11, GS1 DataBar (RSS-14) Part of the accessories which plugs on the right hand side IO expansion port of the main body
Bar Code Scan 2D readable
Code49, PDF417, MicroPDF, Codablock F, Composite,GS1 DataBar (RSS-14)
Stacked , DataMatrix, MaxiCode, QRCode, Aztec Part of the accessories which plugs on the right hand side IO expansion port of the main body
Magnetic Stripe Reader module Snap-on magnetic stripe card reader
ISO Tracks 1, 2 and 3 (ISO/IEC 7811-2 2001) Part of the accessories which plugs on the bottom side IO expansion port of the main body

Tracks 1 & 2 or 2 & 3
USB based
Meet all ANSI/ISO and AAMVA standards

AZEUX -PP38T5 3"portable industrial printer(AT5)

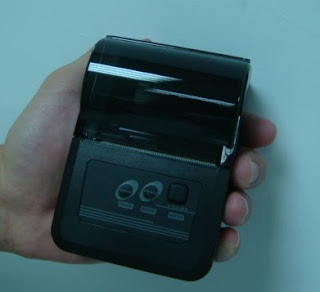

AT3- PP628G 小型打印機( MIni Portable printer)

最新產品AT3 打印機由台灣製造預訂8月中推出, 此項產品主要配合客戶需求; 希望通過台灣品管, 服務; 提供客戶更佳的選擇, 此打印機可讓客戶選擇是否需要刷卡; 與主機則通過籃芽直接連線;此項產品我們不只在台灣, 於馬來西亞辦事處也提供售後服務.

The main feature of the printer are as follow:

1. High Speed printing: 60mm per second max.

2.Low noise thermal printing.

3.RS232, USB, Bluetooth interfaces integrated.

4.The data buffer allows the unit to receive printer data even during printing.

5. Barcode printing is possible by sing abar code command.

Features

-Easy-Loading paper

-Faster printing speed up to 60mm/sec

-Long time lithium-ion battery

-Magnetic Card reader option
